Snap On Modis Ultra: Professional Automotive Diagnostic Tool for Mechanics Review

Want to read the honest reviews of Snap-On Modis Ultra? Then you’ve landed on the right page!

Snap-On modis
Snap-On Modis Ultra Scanner Scan Tool EEMS328 with Accessories
55 / 5
Snap-On Modis Ultra EEMS328 is more than just a reinvention of the original MODIS. It combines speed, superb diagnostics, a sophisticated look, lab scope and a ton of helpful resources in one easy-to-use device.

Snap-On Modis Ultra Overview

In case you’ve been keeping tabs on Snap-On’s scanners then you probably know about the original MODIS. It remains to be one of the most popular and successful OBD scanners in the market today.

If you have it you can solve whatever problem might be causing your car’s Check Engine Light to come on. Besides, it also improves the performance of the vehicle in almost every aspect.

Bonus: See more options for your mechanic shop from my Review of the Best Professional Automotive Diagnostic Scanners for Mechanics 2018 HERE

Fantastic as it is, this latest version takes all the best features of the original and makes them even better. In addition, it is faster and comes with enhanced functionality in pretty much every scope.

With its superior software, the Snap-On Modis Ultra EEMS328 is more than just a reinvention of the original MODIS.
Besides, it also improves the performance of the vehicle in almost every aspect.
———

With its superior software, the Snap-On Modis Ultra EEMS328 is more than just a reinvention of the original MODIS. It combines speed, superb diagnostics, a sophisticated look, lab scope and a ton of helpful resources in one easy-to-use device.

Bonus: Honest Review of the Best Professional Car Diagnostic Tools 2019

Snap-On Modis Ultra vs Autel MS908P vs Foxwell GT80 Mini Comparison Chart

snap on modis ultra
Snap-On Modis Ultra
autel maxisys pro ms908p
Autel Maxisys Pro MS908P
foxwell gt80
FOXWELL GT80 MINI
Customer Rating
55 / 5
4.44.4 / 5
4.24.2 / 5
Pricesnap on modis ultra priceautel maxisys pro ms908p pricefoxwell gt80 price
Weight3.2 pounds22.4 pounds5.3 ounces
Dimensions12.5 x 6.5 x 2 inches0.1 x 0.5 x 0.3 inches18 x 15.1 x 5.9 inches (Biggest body)
OBD2 and some OBD1 vehiclesYesYesYes
Check ABSYesNoYes
Read and clear codesYesYesYes
Auto-Vin TechNoYesYes
TPMSYesNoNo
WifiYesYesYes
ScopeYes (lab scope)Yes (Maxi scope, Oscillo scope)No
Bottom LineThe Snap On Modis Ultra EEMS328 is specifically designed to help professional mechanics.Autel MS908P is excellent for mechanics who often work with Vehicle Repair & Maintenance.FOXWELL GT80 MINI is a great choice for mechanics and professional tech

Read more: Honest Review of Autel Maxisys Pro MS908P Diagnostic Tool for Professional Mechanics

Snap-On Modis Ultra Detailed Review

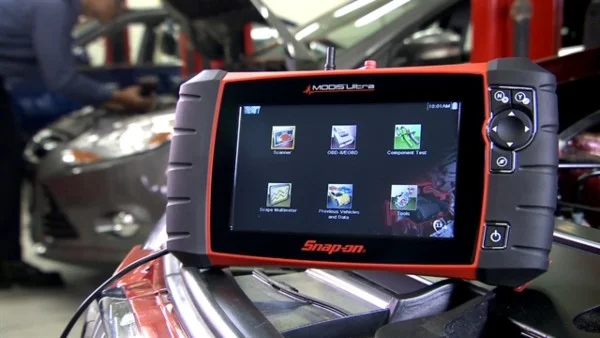

The Modis Ultra EEMS328 scan tool has everything you need in an OBD scanner. The 8-inch touchscreen display makes it easier to navigate. Combine that with its sophisticated construction and super-fast diagnostics, you’ll realize you have a real life-saver.

It doesn’t just tell you what’s wrong with your vehicle, it does so in a time-saving fashion. These are some outstanding features of this model:

Compatibility

The Snap-On Modis Ultra checks and clears codes for all OBD2 vehicles. The scanner covers over 40 vehicle models.

OBD2 cars are those manufactured from 1996 onwards. So your car is a 1996 or newer model you can definitely use this tool to check for and repair mechanical problems.

the Snap-On Modis Ultra connects directly to the car’s system using a single, keyless cable.
The scanner covers over 40 vehicle models.
———

The EEMS328 is also compatible with selected OBD1 models (vehicles manufactured before 1996). They include 1980-newer models made in the US, 1983-newer models made in Asia and some 1992-newer models made in Europe.

As for OBD2, the Snap-On Modis Ultra connects directly to the car’s system using a single, keyless cable. It can read your car’s system even without you having to change keys. That should save you some precious connection time.

Functionality

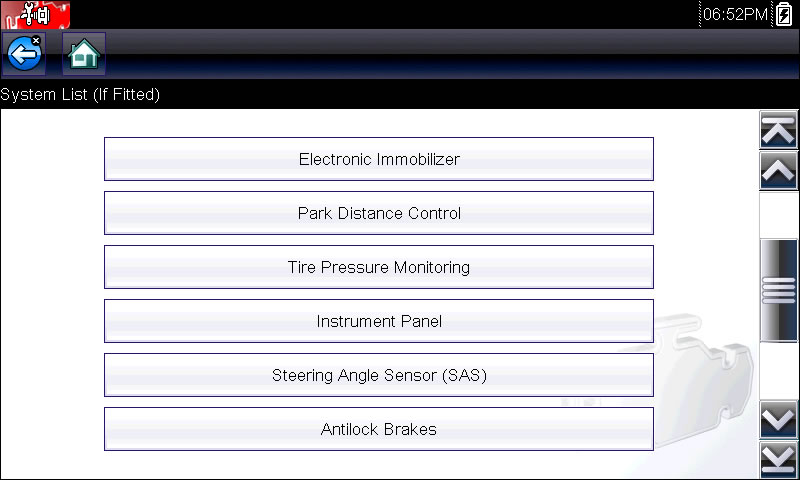

The Snap-On Modis Ultra scanner reads and clears codes for all available modules in the vehicle.

That includes traditional systems like transmission, engine, steering, body, airbag, and suspension. It also covers newer technologies like park assist, the steering sensor, hybrid power, TPMS and so much more.

The Snap-On Modis Ultra EEMS328 also runs automated functional tests
The Snap-On Modis Ultra scanner reads and clears codes for all available modules in the vehicle.
———

The best thing about this scanner is its unique “cause and effect” feature. It not only reads codes but also tells you the root cause of any detected problem.

The Snap-On Modis Ultra EEMS328 also runs automated functional tests like tire calibration, cylinder contribution, brake bleed, caliper rewind, steering angle check, and service reset among others. Basically, it pinpoints and reports every single problem.

Speed

First of all, the Snap-On Modis Ultra scanner is a one-touch access device. It means you get entry into the car’s systems with just one touch. That makes it much better than most OBD tools which require tedious navigation before access.

Even better, the device only takes 5 seconds to boot up and 30 seconds to start displaying diagnostic results. You can’t get a scanner that can beat that speed!

Still, on the subject of speed, the Modis Ultra is fitted with a lithium-ion battery to save you some time. It switches from the car’s power to battery automatically. There’s no need to stop your scan in order to recharge the scanner.

Interface

The big, 8-inch touch screen keypad fitted on the Snap-On Modis Ultra is a welcome feature. With a resolution of 800 x 480, it gives the scanner a sleek, ultra-modern appearance. It allows you to navigate and operate the device with ease.

As far as data storage goes, the scanner has a removable micro SD where codes, diagnostic results, lab scope data, previous vehicle ID, 2000-frame scanner videos, and images are stored.

You can download all that information to a PC by using the USB cable. Or you can use the ShopStream Connect app (from Snap-On) to do the same.

Software

Originally, Snap-On released Modis Ultra Scanner Tool EEMS328 with software version 15.4. Today it runs on version 17.4, an upgrade of the original.

 Snap-On released Modis Ultra Scanner Tool EEMS328 with software version 15.4.
Today it runs on version 17.4, an upgrade of the original.
———

The current software also comes with SureTrack. This feature examines the vehicle and provides records of verified replaced parts.

Package

The Snap-On Modis Ultra scanner comes as a full kit that includes power adapter, cables, and original box. Here’s a more specific list of items in the package:

  • The scanning device
  • 4 Snap-On adapters
  • 2 Snap-On secondary cables (one green and the other yellow)
  • 9 Snap-On “S” keys
  • 9 alligator clips
  • 2 test pins
  • AC adapter/charger
  • Micro SD card (4GB)
  • USB cable
  • User manual
  • Getting started pack

Other Pros

  • Size: the Snap-On Modis Ultra measures 12.5 x 6.5 x 2 inches and weighs 3.2 pounds.
  • Wi-Fi: this feature helps you get diagnostic answers and tips in a matter of seconds.

Snap-On Modis Ultra Cons

Perhaps the biggest drawback of the Snap-On Modis Ultra is its price. You will have to spend lots of money to get one. That’s quite expensive for who is not a professional mechanic.

Also, while it works perfectly with OBD2 cars, it is not compatible will all OBD1 vehicles, especially non-US makes.

The interface is amazing, but the 8-inch screen makes the whole device rather large compared to most other OBD scanners. But it’s still very portable and easy to store in a car’s compartment.

Read More: Autel MaxiSys Pro MS908P: Professional Automotive Diagnostic Tool Review

Who Is It For?

Overall, the Snap-On Modis Ultra is not complicated but can handle the hardest of diagnostic tasks. It is quite sleek and sophisticated compared to other scanner tools. You don’t need a lot of expert knowledge to find your way around it.

At the very least it will help you figure out the problem every time the Check Engine Light comes on. You can also use it to improve your car’s performance. That’s virtually everything you need in a scanner.

The Bottom Line

The Snap-On Modis Ultra EEMS328 is specifically designed to help professional mechanics handle diagnostic tasks easily. Basically, you can use it to diagnose your car’s problems even before professional mechanic steps in to help.

That, together with the sophisticated construction, makes the Snap-On Modis Ultra Scanner Tool EEMS328 a must-have. It will come in handy when your car breaks down or gives you a mechanical warning. So go ahead and purchase this scanner to avoid getting stuck with a vehicle breakdown.

Read More: Snap-On VERUS PRO D10: Professional Wireless Diagnostic Scanner Review

Tim MillerFounderOBD Advisor

I’m Tim Miller from Denver, Colorado. I’m the founder of obdadvisor.com, an automotive blog about "Diagnostic Tools and Auto Repair". My fan page is facebook.com/autozikcom. I've been working as an automotive mechanic and blogger for over 10 years writing articles to share my experiences and expertise.

Web: https://www.obdadvisor.comEmail: [email protected]
Follow me:
