A failure in your catalytic converter can cause your car to fail a smog test. It can also diminish the overall performance of your engine and make you use more fuel.
An error code P0430 tells you the system is sensing a problem with your catalytic converter’s efficiency. This could be a problem with the converter itself, or with the oxygen sensor reporting the code. Read on below to learn the trouble code’s specific source—and how to resolve it.
Table of Contents
- 1 P0430 Code Definition
- 2 What Does P0430 Mean?
- 3 What Are The Symptoms Of The P0430 Code?
- 4 What Are The Causes Of P0430?
- 5 How Serious Is The P0430 Code?
- 6 How To Diagnose The P0430 Code?
- 7 Common Mistakes To Avoid While Diagnosing The P0430 Code
- 8 What Should You Do To Fix The Code P0430?
- 9 Tips To Avoid P0430 In The Future
P0430 Code Definition
P0430 Code Definition (Generic): Catalyst System Efficiency Below Threshold (bank 2)
P0430 Nissan: Catalyst Efficiency Below Normal (Bank 2)
P0430 Toyota: Catalyst System Efficiency Below Threshold (Bank 2)
P0430 Chevy: Catalyst System Efficiency Below Threshold (Bank 2)
P0430 Dodge: Catalyst (2/1) Efficiency Below Normal
P0430 Lexus: Catalyst System Efficiency Below Threshold (Bank 2)
What Does P0430 Mean?
The trouble code P0430 comes up when your system senses the catalytic converter isn’t functioning as efficiently as it should. The catalytic converter is the part of your engine that breaks down the harmful pollutants created by the engine.
When the catalytic converter fails, your car will put out more smog than it should. This will likely cause you to fail a state emission test. If you detect this code you should clear it before taking your car for an inspection.
The P0430 error code can be difficult to correctly diagnose. It’s essential to have an advanced OBD2 scan tool that allows you to see engine misfires, freeze frame data, live data, and readings from the oxygen sensor. You’ll likely need all of this information to identify the true root of the problem.
What Are The Symptoms Of The P0430 Code?
The drivability problems with the P0430 code are usually minor, and are similar to those from other trouble codes. These include:
- Activation of the check engine light
- Reduced engine power
- Smell of sulfur from the engine
- Increased fuel consumption
- Dipping or rough idle, especially when cold
What Are The Causes Of P0430?
There are a few potential causes for the trouble code P0430:
- System leaks: Exhaust leaks in the engine can read to sensors as extra pollution, triggering the P0430 error code. These readings can also be triggered by leaks in the fuel injector or head gasket.
- Oxygen sensor: A faulty oxygen sensor could be given you a false reading.
- Catalytic converter: The converter itself may be faulty or worn out.
How Serious Is The P0430 Code?
That depends on what the P0430 is pointing you toward. If it’s a failure of the catalytic converter, this can be a serious and costly repair. Driving with a failed catalytic converter can seriously damage your engine.
You can drive a car with a P0430 trouble code for a little while. Because of the potential severity of the problem, though, you should diagnose it as soon as possible.
How To Diagnose The P0430 Code?
Tools you’ll need to diagnose P0430:
- Check the exhaust system for leaks. Listen for exhaust sounds in the manifold, gaskets, and pipes prior to the catalytic converter. You may also see black smoke coming out of the engine.
- Visually inspect all your oxygen sensors. Check the wires for damage and make sure they’re not touching any parts of the exhaust system. Replace and adjust as needed.

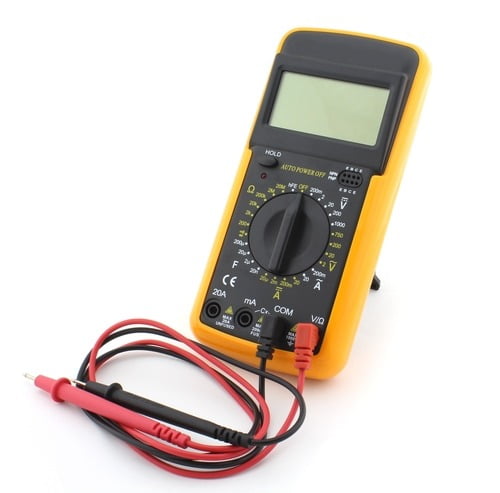

- Start your car and let it idle until it’s reached normal operating temperature. Use a digital multimeter to check the voltage of the oxygen sensor downstream of the catalytic converter. It should give a steady reading of .45v. If it’s jumping between .1v and .9v, either the oxygen sensor or the catalytic converter are malfunctioning.
- Create a vacuum leak in your system by opening the vacuum port on top of your engine. This should cause fluctuations in your oxygen sensor readings. If the reading doesn’t change, your sensor is faulty and needs to be replaced.
- Check the freeze frame data for all codes found. This will tell you what conditions caused the code to occur and can help you identify the source of the trouble code. The oxygen sensor readings can also help you identify the source of the issue.
- Test the catalytic converter using an infrared temperature meter. With your car at normal operating temperature, point the meter at the incoming exhaust pipe. Take another reading where the outgoing exhaust leaves the catalytic converter’s housing. The reading should be higher after the converter by between 30°F and 100°F. If it’s the same, the catalytic converter is either clogged or faulty.
Common Mistakes To Avoid While Diagnosing The P0430 Code
There are a few other codes that are closely connected to P0430. These include codes P0300-P0308, P0171, and P0174. Scan for these trouble codes before diagnosing P0430 as they could trigger a false reading. If any of them are present, fix them first then clear the codes and scan again.
What Should You Do To Fix The Code P0430?
The catalytic converter is an important part of your engine. If it’s malfunctioning, you want to replace it as soon as possible. This is also a costly repair, however, so you don’t want to have it done needlessly. The best practice is to first address all other potential causes of the trouble code found in your diagnosis.
After each step, clear the DTCs and take a small test drive, then scan your system again. By eliminating
Follow the steps below to repair the code P0430:
- Repair any exhaust leaks found and flush the exhaust system to ensure there are no clogs.
- Test the fuel injectors by listening for clicking. You can use a long, thin metal rod (like rebar or a long screwdriver) to amplify the sound over the engine’s noise. Replace any injectors that aren’t clicking, then listen again. If they’re still not making sound, examine your electronic system and nearby wiring for damage.
- Test your oxygen sensors again using steps 3-5 above. If it fails the vacuum test, replace the oxygen sensor. You should also replace the oxygen sensor if it failed the multimeter test and your catalytic converter passed the temperature test in step 6.
- Clean the catalytic converter by pouring catalytic converter cleaner into your fuel tank. Drive your car for a few miles. If possible, go on a highway or other high-speed road so you can push your engine over 3,000 RPMs. Keep your eye on the car’s temperature to make sure it’s not overheating.
- Test the catalytic converter again. If it still fails, replace it.
Tips To Avoid P0430 In The Future
Preventative maintenance of the catalytic converter and exhaust system is the best way to avoid the P0430 trouble code. Visually inspect your engine regularly to check for leaks or damage. You can also use catalytic converter cleaner occasionally to clear away deposits before they have a chance to completely clog the system.
