P0171: System Too Lean (Bank 1)

Is your scanner showing P0171?
No worries. We'll show you what it means and how to deal with it.

Presented by

Randy Worner

00:00/00:00

P0171: System Too Lean (Bank 1)

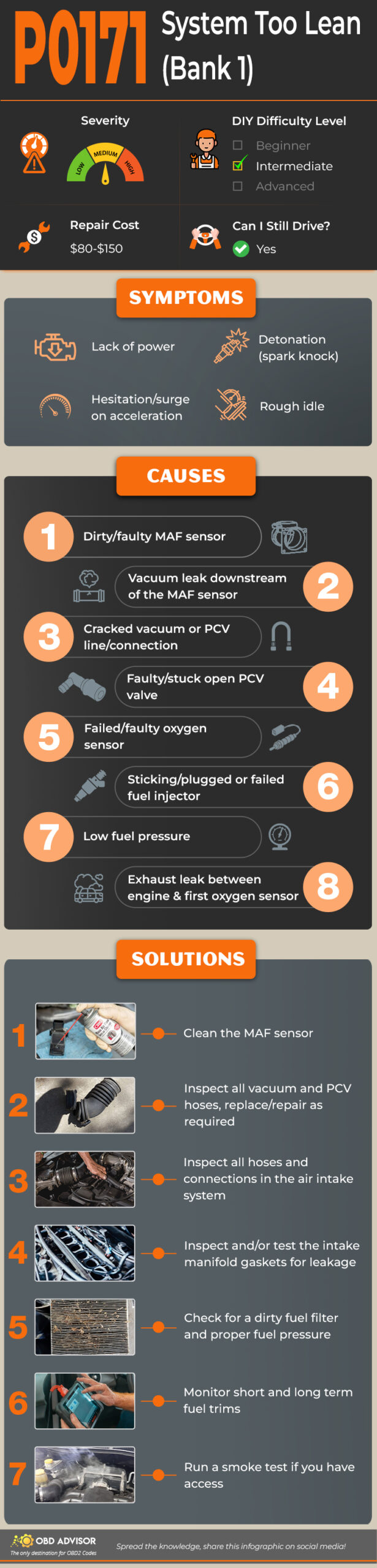

OVERVIEW

Severity

Medium

DIY Difficulty Level

Intermediate

Repair Cost

$80-$150

Can I Still Drive?

Yes (Short-term only)

What Does The P0171 Code Mean?

Basically this means that an oxygen sensor in bank 1 has detected a lean condition (too much oxygen in the exhaust). On V6/V8/V10 engines, Bank 1 is the side of the engine that has cylinder #1. The P0171 is one of the more common trouble codes.

This code is triggered by the first downstream (front) O2 sensor. The sensor provides a reading of the air:fuel ratio leaving the engine’s cylinders, and the vehicles powertrain/engine control module (PCM/ECM) uses that reading and adjusts to keep the engine running at that optimum ratio of 14.7:1. If something is not right and the PCM cannot maintain the 14.7:1 ratio, but rather there is too much air, it triggers this code.

You’ll want to also read our article on short and long term fuel trims to help understand the operation of the engine.

Note: This DTC is very similar to P0174, and in fact your vehicle may show both codes at the same time.

What Are The Symptoms Of The P0171 Code?

You will more than likely not notice any drivability problems, although there may be symptoms such as:

a lack of power
detonation (spark knock)
rough idle
hesitation/surge on acceleration.

What Are The Potential Causes Of The P0171 Code?

A code P0171 may mean that one or more of the following has happened:

The MAF (Mass Air Flow) Sensor is dirty or faulty. Note: The use of “oiled” air filters may cause the MAF to become dirty if the filter is over-oiled. There is also an issue with some vehicles where the MAF sensors leak the silicone potting material used to protect the circuitry.
There could be a vacuum leak downstream of the MAF sensor
Possible cracked vacuum or PCV line/connection
Faulty or stuck open PCV valve
Failed or faulty oxygen sensor (bank 1, sensor 1)
Sticking/plugged or failed fuel injector
Low fuel pressure (possible plugged/dirty fuel filter!)
Exhaust leak between engine and first oxygen sensor

How Can You Fix The P0171 Code?

A lot of times, cleaning the MAF sensor and finding/fixing vacuum leaks fix the problem. If you’re on a tight budget, start there, but that may not be the fix for certain. So, possible solutions include:

Clean the MAF sensor. Consult your service manual for it’s location if you need help. I find it’s best to take it off and spray it with electronics cleaner or brake cleaner. Make sure you are careful not to damage the MAF sensor, and make sure it’s dry before reinstalling
Inspect all vacuum and PCV hoses, replace/repair as required
Inspect all hoses and connections in the air intake system
Inspect and/or test the intake manifold gaskets for leakage
Check for a dirty fuel filter and proper fuel pressure
Ideally you’ll want to monitor short and long term fuel trims using an advanced scan tool
If you have access, you may want to run a smoke test
