Audi P1345: Ignition Coil Power Output Stage 3 Short to Ground

Is your scanner showing Audi P1345?
No worries. We'll show you what it means and how to deal with it.

Presented by
Randy Worner

Audi P1345: Ignition Coil Power Output Stage 3 Short to Ground

OVERVIEW
Severity
:
High
DIY Difficulty Level
:
Intermediate
Repair Cost
:
$150-$300
Can I Still Drive?
:
No

What Does The Audi P1345 Code Mean?

Key on or Engine started, battery voltage at least 11.5v, all electrical components off, ground connections between engine and chassis well connected, and the ECM detected the voltage of the ignition coil was outside the designed parameters.

What Are The Potential Causes Of The Audi P1345 Code?

  • Fuel pump relay faulty

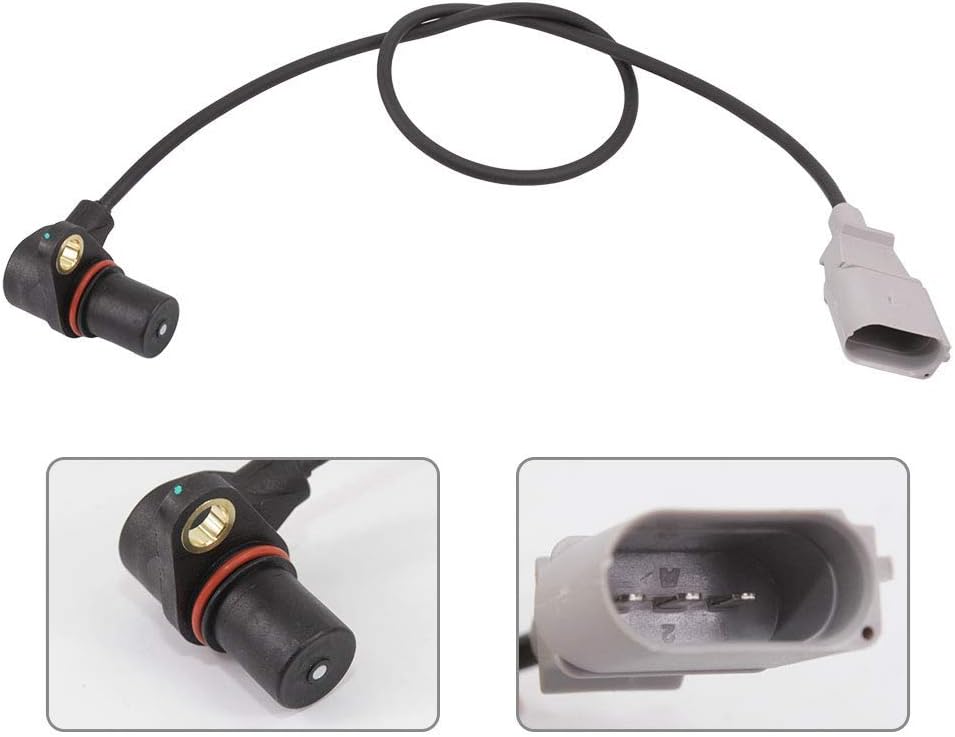

  • Camshaft position sensor has failed
  • Engine speed sensor has failed
  • Circuit wires have shorted to ground or are open

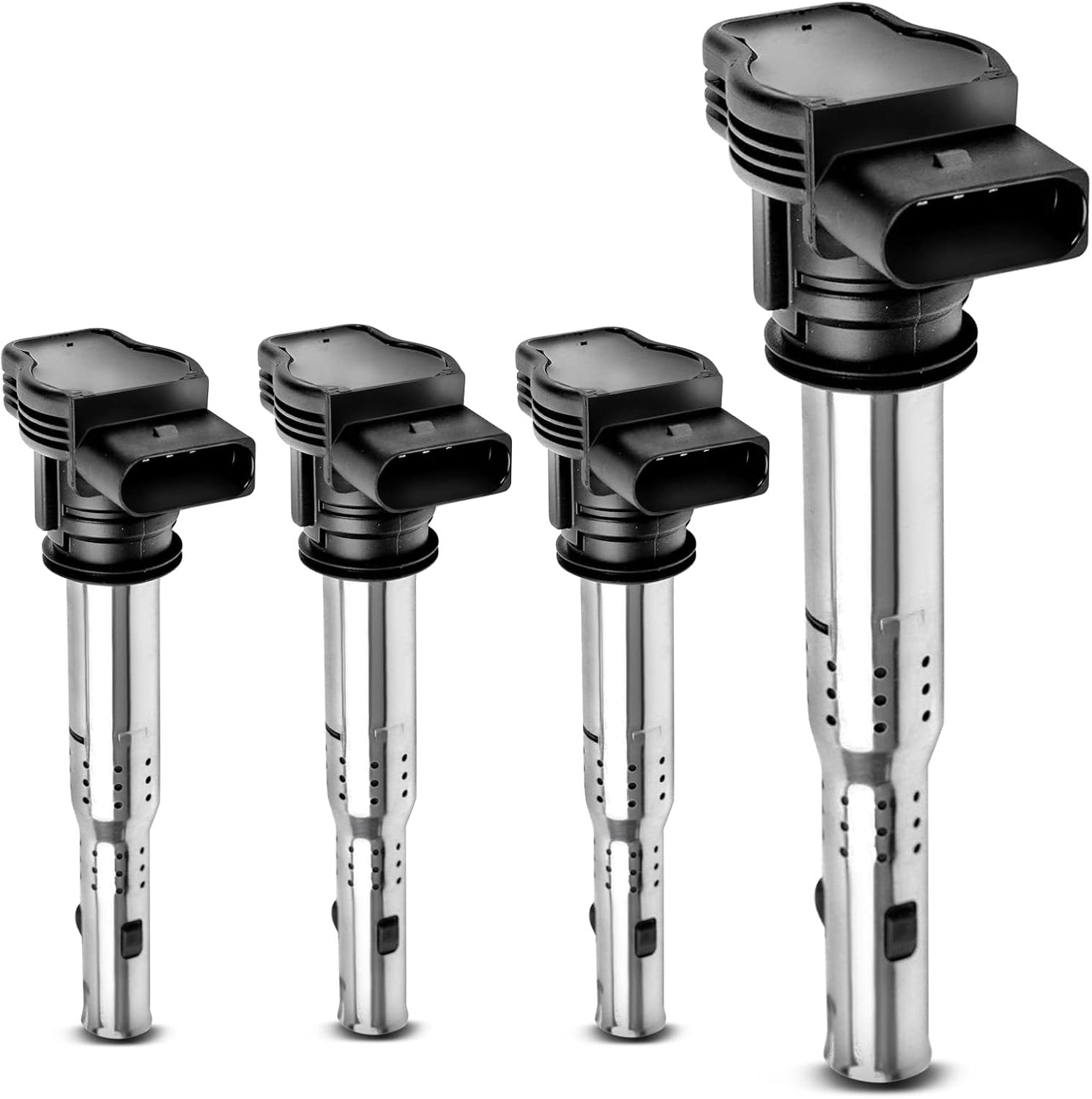

  • Ignition coils with power output stages are faulty
  • ECM has failed

Recommended Parts

Below are some recommended auto parts to help you address the trouble code affecting your vehicle and get it running smoothly again:

Note: During the purchasing process, please check carefully whether the part you want to buy fits your car!

Reference Sources

Audi P1345, DTCDECODE.
