Starter Malfunctions: A Closer Look at the Reasons

Starter malfunctions create can be both mechanical and electrical failures with their own distinctive features.
A starter is an electromechanical device that provides engine start.
Credit: upload.wikimedia.org

A starter is an electromechanical device that provides engine start, creating the primary torque of the crankshaft with the necessary rounds so that the compression ratio is formed to ignite the combustible mixture.

And when the starter does not work or works intermittently, the engine start is very problematic and sometimes impossible. But before you start looking for reasons why the starter does not work, you need to remember that this unit works in tandem with other vehicle systems in a common starting and charging circuit (battery-start control mechanism-starter). Therefore, there can be both mechanical and electrical failures with their own distinctive features.

Electrical Malfunction Reasons

When the starter does not turn the engine or turns it slowly, with insufficient power to start, then, first of all, it is worth checking the electrical circuit, starting from the battery:

  • The battery must be well charged.
  • The ground contacts are reliable and well secured.
  • The wire from the terminal of the ignition relay is intact and has good contact.
  • The wire on the battery section of the starter is not damaged and has good contact.
  • The contact group of the ignition lock is functioning properly.

These points should be noted when the key is turned in the ignition lock, but the ignition relay does not work, the armature does not rotate. If there is a break in the starter relay coil, as well as heavy contacts sparking.

On the problems of the starter on the electrical part may also arise due to the slow turning of the flywheel.

And when there is no apparent reason, it is worthwhile to dismantle the part for inspection, because the commutator may have burnt or its plates have shorted out. Although, the main possible reason is most probably worn out or stuck brushes.

Since typical starter faults are:

  • Loose brushes next to the commutator.
  • Ignition relay failure.
  • Worn out armature commutator.

Starter Structure and Working Principle

If the electrical part is OK and the circuit is intact, then it is worthwhile to dismantle the spare part for disassembly and detailed inspection in order to detect defects. But before you do this, you need to study the structure and working principle of the starter.

starter malfunctions

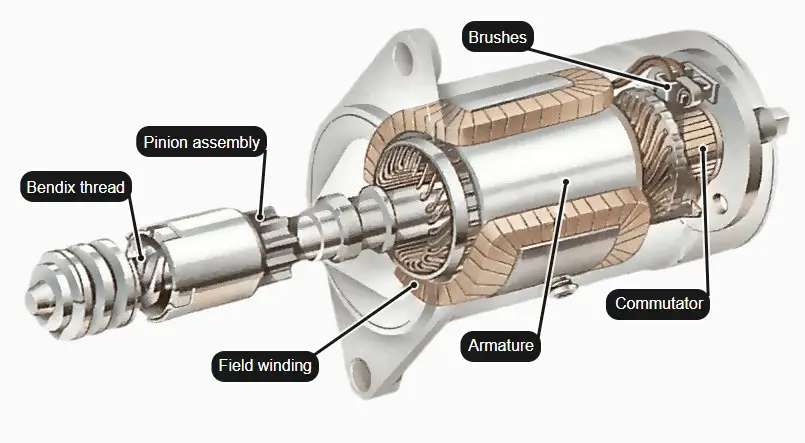

The structure and working principle of the starter.

When you turn the key and start the engine, the following processes occur:

  • The heavy contacts of the lock close and through the ignition relay, the current is fed to the solenoid.
  • The ignition switch has a return spring. The magnetic field in the windings forcefully anchors the armature into the body (compressing the return spring). As soon as you release the key it springs back and turns the starter switch off.
  • Then it begins to push the iron rod with the commutator plate, which closes two heavy contacts of the ignition relay, as a result, the starter motor starts to turn. The return springs are needed because the starter motor must not turn more than it has to in order to start the engine. The reason is partly that the starter uses a lot of electricity, which quickly runs down the battery.
  • And at the same time, the Bendix gear is pushed forward with actuating arm, engaging its pinion with the flywheel. As a consequence, it starts the engine.
  • At that moment, when the flywheel starts to go faster than the Bendix gear, the overrunning clutch prevents the transmission of torque and the Bendix gear, retracted by the actuating arm, thanks to the return spring it returns to its position.
  • The ignition key returns to its original position and the current at the control terminal disappears.

Based on the scheme considered, it is possible to make assumptions about possible malfunctions at the appropriate stages.

Mechanical Malfunctions

If the starter is running but the engine does not start because the crank does not turn, any mechanical malfunctions can be detected.

Parts to be checked: overrunning clutch arm, clutch ring, return spring, flywheel crown.

One of the reasons why the starter does not turn the crank.

With the spinning starter, the engine start may not happen because the clutch slips, the release arm fails, or it has slipped out of its axis, the clutch lead ring is worn, or the return spring fails. When a rattle gnashes at startup, these symptoms may indicate wear of the flywheel crown teeth. In this case, it is worth checking the adjustment of the pinion stroke and the condition of the return spring.

If you heard an unusual noise when the starter is running, it is worth examining it from the pothole and underhood space, as one of the following starter malfunctions may have occurred:

  • The bearing liners, as well as the necks on the armature shaft, are worn out.
  • The fastening bolts of the starter are loosened.
  • The teeth were damaged.
  • The pole’s fastening is loosened inside the starter, so the armature hits it.

But besides the startup phase, the problems may also occur after it. It’s is a typical situation where the starter does not shut down but continues to spin. These may be the reasons:

  • A jammed actuator arm or an armature driver.
  • The ignition relay is jammed.
  • The contacts on the ignition relay are sticking together.
  • The return spring of the ignition switch or the freewheeling clutch spring is worn out.

In this case, quickly disconnect the starter terminal or the relay terminal and look for the cause of the starter malfunction.

If the above-mentioned issues are not faced, but the starter still behaves unusually when the engine starts, it is worth looking at the symptoms that promise a rapid malfunction:

  • The starter only starts spinning after a few key turns. This symptom indicates a burnout of the contacts in the ignition relay.
  • After starting, began to gear off late. There is wear on the Bendix gear teeth or flywheel crown.
  • The starter started spinning with great difficulty, although the battery is charged. Such a response is likely to indicate that the brushes are worn or there is bearing failure.

According to BestArny.com, starter’s working life is around 70,000 – 200,000 km and for it to serve your car for as long as possible, some preventive work is necessary on a regular basis.

In order to check the starter and its subsequent repair as correctly as possible, it is recommended to study the technical characteristics of a specific model. The main ones are rated voltage and power, current consumption and torque, as well as the shaft speed.
