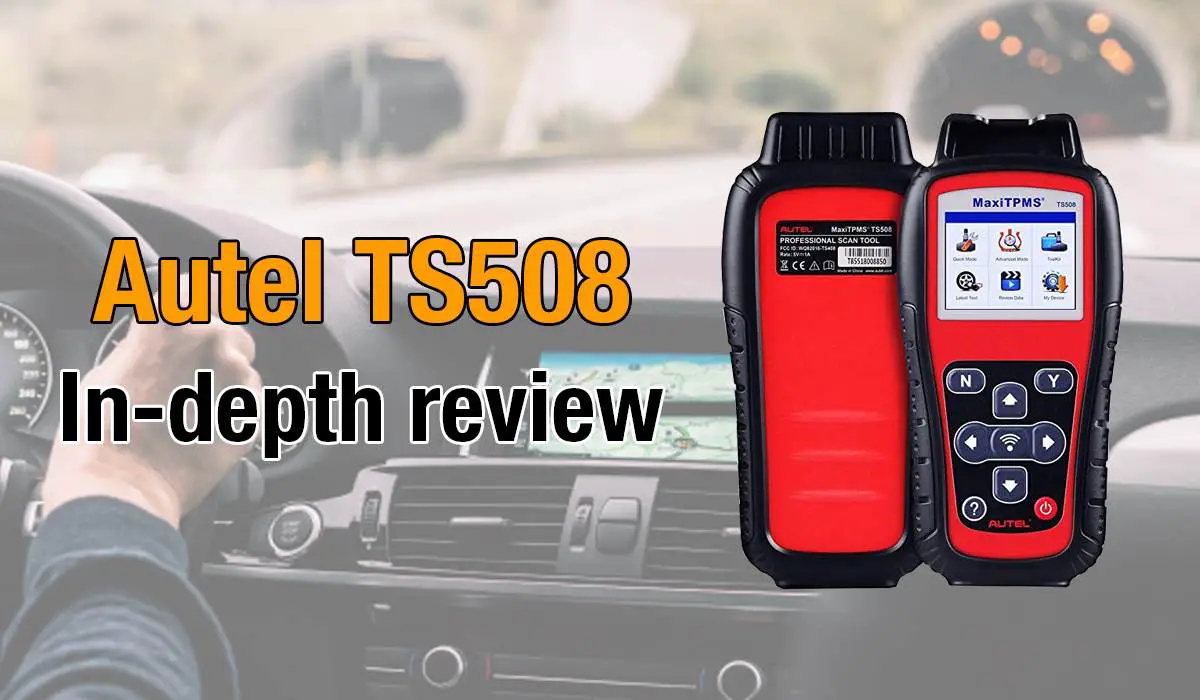

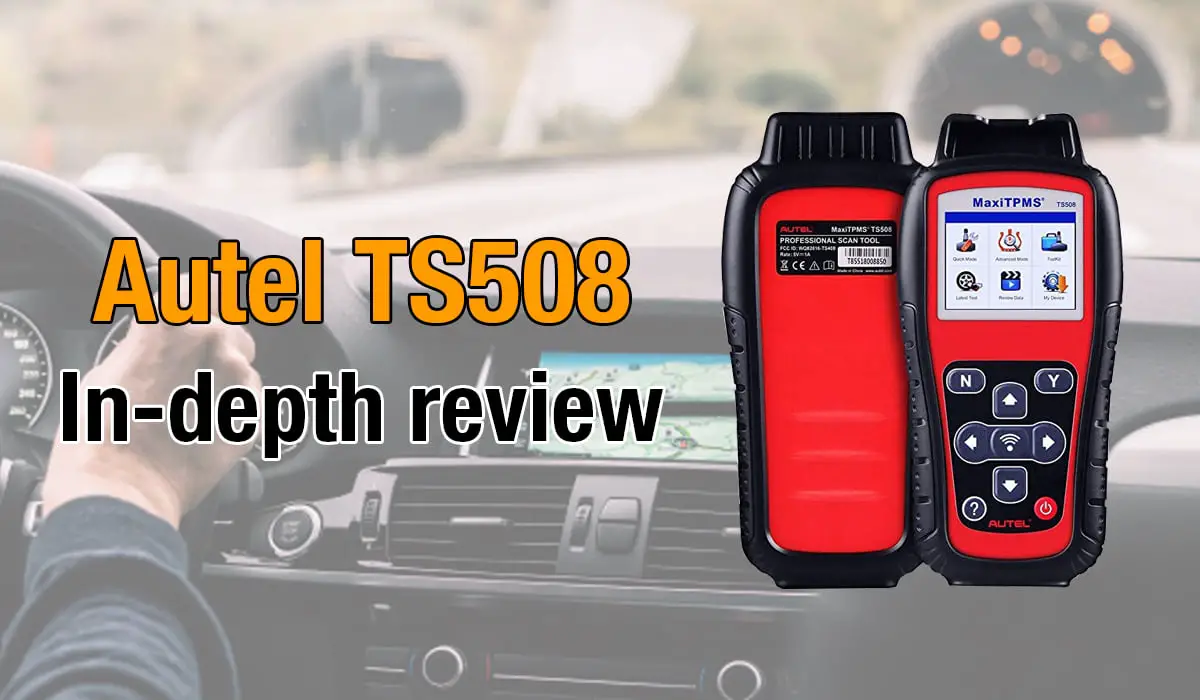

Autel TS508: An Excellent TPMS Service Tool Review

Autel TS508 is capable of carrying out many TPMS related tasks. It can read TPMS sensors, keep tabs on TPMS health condition, activate all known TPMS sensors, and even program sensors.

It offers two modes: quick and advanced mode. While they do the same thing, the speed and features slightly differ.

Let’s know more about Autel TS508 and see if it’s the right pick for you:

Autel TS508 In-depth Review

Autel TS508
Autel TS508 TPMS Tool
4.24.2 / 5
Autel TS508 is capable of carrying out many TPMS related tasks. It can read TPMS sensors, keep tabs on TPMS health condition, activate all known TPMS sensors, and even program sensors.

Special Features

Two Modes: This tool offers two service options to perform TPMS repairs:

  • Quick Mode: It allows you to perform basic TPMS jobs such as checking TPMS sensors and programming MX-sensors.
  • Advanced Mode: In the advanced mode, you can check TPMS sensors, diagnose TPMS, perform MX sensor programming, and conduct sensor position relearn as well.

Do not let the names fool you. The Quick Mode does not necessarily work quicker. It just concentrates on simple tasks that require less time to finish. Similarly, the Advanced Mode is not very complex. It just concentrates on more advanced functions.

You will not need a complex understanding of the tool to use either of the options.

TPMS Diagnosis: Autel TS508 lets you perform TPMS diagnosis to find out TPMS related problems. You can check sensor-related problems, deflation in the tires, and the rotation of wheels.

Such information is important to gauge the condition of the vehicle and ensure it is safe to drive.

The system also lets you check pressure, temperature, read sensor ID, and battery level.

These problems are displayed on the TPMS status screen. You will face no trouble in reading it.

Sensor Programming: You will face no problem in programming sensors with this tool.

You can perform the job by choosing one of the following methods:

  • Auto Create 1-16 Sensors
  • Copy by Activation
  • Copy by Manual Input
  • Copy by OBD

The last option is only available in the Advanced Mode.

DTCs: Apart from reading the ECU sensor ID, this tool can check sensor ID, ECU ID matching condition, and read DTCs from the ECU. You can also use it to clean this information.

The tool shows detailed DTC description on the screen. It further explains the code displayed so that you have no problem in understanding what the issue is.

Read/Erase TPMS Codes: If you think this beauty only reads TPMS fault codes then you’re wrong. It is also equipped to erase codes. Fix the problem and use it to get rid of the code.

Some of the most common TPMS faults include poor tire pressure, slow rotations, malfunctioned sensors, and wiring problems. It will help you identify the problem so that you can fix it or hire help to get it fixed.

Advanced Features: This tool offers a few complex functionalities as well. You can use the tool to check the Key Fob for issues.

Other than this, it also offers OBD II-relearn. It’s a great feature as a number of cars require this type of relearning.

Print Data: You can use a computer to print data. It can come handy if you want to share results with an expert.

Autel TS508 TPMS Tool

Autel TS508 is capable of carrying out many TPMS related tasks.
———

Display: Operating the tool is a breeze as it has a big display screen. The menu is easy to read, and the TFT color display is attractive to look at and will cause no problems even when the sun is out.

Update

This beauty comes with free updates for a lifetime.

Register on the official Autel website and keep downloading updates from it.

The process is pain-free. It comes with a USB cable that you can use to connect it to your computer.

The updates will first have to be downloaded on the computer and then installed on the unit.

It is important to perform timely updates so that the device can continue to work well. In fact, Autel is known to come up with new updates to make its tools more powerful.

Accessories: It comes with a bunch of accessories including:

  • A user manual (can use it to find help)
  • A USB cable (connect to the computer)
  • A carrying case (makes it easy to carry the device)
  • An OBD2 cable (for specific relearning)
  • A CD (contains software and guidelines).

Vehicle Coverage

It works best with all the vehicles that come equipped with a TPMS system. This includes domestic, Asian, and European vehicles. It may, however, not support the latest models unless you update the software.

Pros


  • Comes with 8 MX-sensors.
  • Equipped with a powerful 3200 mAh battery.
  • Makes a connection with the TPMS module using OBD2 cable for sensor ID relearning.
  • Shows vehicle specific relearn procedures.
  • Allows to manually input OE ID into MX sensor.
  • 1-year warranty.

Cons

  • Can be a bit difficult to update.


Autel TS508 vs. TS408 vs. TS608 Comparison Chart

Autel TS508
Autel TS508
Autel TS408
Autel TS408
Autel TS608
Autel TS608
Customer Rating
4.24.2 / 5
4.34.3 / 5
3.53.5 / 5
PriceAutel TS508 priceAutel TS408 priceAutel TS608 price
Weight4 pounds1.76 pounds 5.95 pounds
Dimensions12.9 x 10.1 x 4 inches 13 x 11 x 4 inches12 x 4.5 x 15 inches
Update free free 1-year free
Scan TPMS Sensor ID
Read and clear TPMS DTS
Activate TPMS sensors
Reprogram TPMS
Clone TPMS Sensors
Relearn TPMS ECU
Read TPMS Codes
Read Other System Codes
Print Data via PC
Historical Records

FAQs

#1 MaxiTPMS TS608 seems more powerful so should I choose it?

MaxiTPMS TS608 is more powerful but it is also bigger and more expensive. It’s essentially made for professionals so consider your use case when picking one.

#2 Can I use MaxiTPMS TS508 without updating it?

Autel TPMS TS508 may not work unless you update the software. Plus, updating is also required to enjoy all the features. You may not be able to connect it to all devices unless it is updated.

#3 Does it support after-market sensors?

It may only support Autel after-market sensors but that’s also not guaranteed.

#4 How is the company’s customer support?

Autel is known to be professional and offers exceptional customer service. You can get in touch with the company online or give them a call.

#5 Will I need a professional to understand how Autel MaxiTPMS TS508 TPMS tool works?

No, the purpose of the Autel MaxiTPMS TS508 TPMS tool is to allow you to handle TPMS-related matters on your own. It comes with a manual and CD to help you understand how the tool functions. Plus, it’s also very easy to use so expect no challenges.

A video of Autel TS508.
